Driver Software Operating Instructions - Quick User Guide

1) Download and install the driver software

2) Create the short cut to the Podmng.exe file as shown in Fig 1

3) Activate the Podmng software.

As long as the driver software is stored within the directories specified
then the Podmng software will appear onto the bottom right hand side of the task bar.

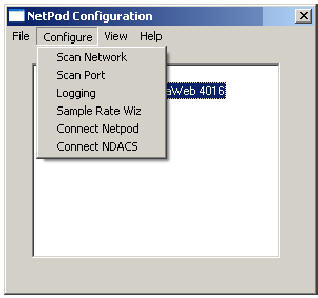

4) Using the Podmng icon select the “Configure” option and the Window shown in Fig 2 will appear.

Select Configure -> Scan Network Option

Fig 2

Fig 1

The Podmng software will now scan the network onto which the instrument and data processing PC are located for data packets. Any instruments that are identified will be shown on the main driver Window.

Fig 3

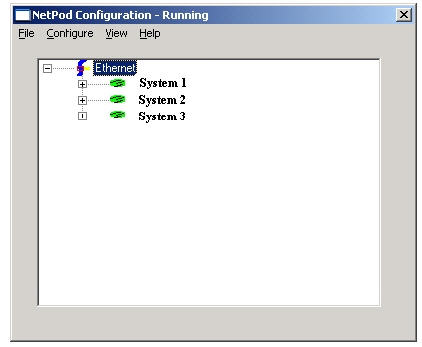

5) Once the Podmng software has completed scanning the network a Window similar to that shown in Fig 3 will appear and all the instruments identified on the network will be listed.

Only after the instruments are identified will it be possible to make any system configuration changes.

Fig 3 demonstrates how 3 instruments will appear within the software.

Data Acquisition Operations

6) To start data acquisition operations

Select File -> Run Mode

The task bar icon will change from from Red (See Fig 4) to green (See Fig 5).

Fig 4

Fig 5
