LABVIEW/LABVIEW CVI

LabWindows/CV is a full graphical C/C++ programming environment fully supported by the NP4000 instrumentation.

Virtual Instrument Tools for C/C+

laborious/CVI is an integrated ANSI C environment designed for scientists and engineers who are involved in the design and operations of monitoring and control systems. The NP4000 driver software and support libraries are full integrated into the LabWindows/CVI environment enabling rapid prototyping of distributed data acquisition and control systems in a single tried and tested package. Applications such as laboratory testing, plant wide monitoring and control systems can be easily created.

Features

  • Integrated Development Environment.
  • Open Systems Architecture.
  • ANSI C.
  • Create Executable Code
  • Full TCP/IP Data Tx Support.
  • Built-in Libraries.
  • Unlimited Systems Expansion.
  • High Productivity & Re-usable Code.
  • Drag & Drop User Interface.
  • Build & Distribute Fast Executables.
  • Instrument User Interface Controls.
  • Full NP4000 Support.
  • Password Protected Environment.
  • Multi-user Support.

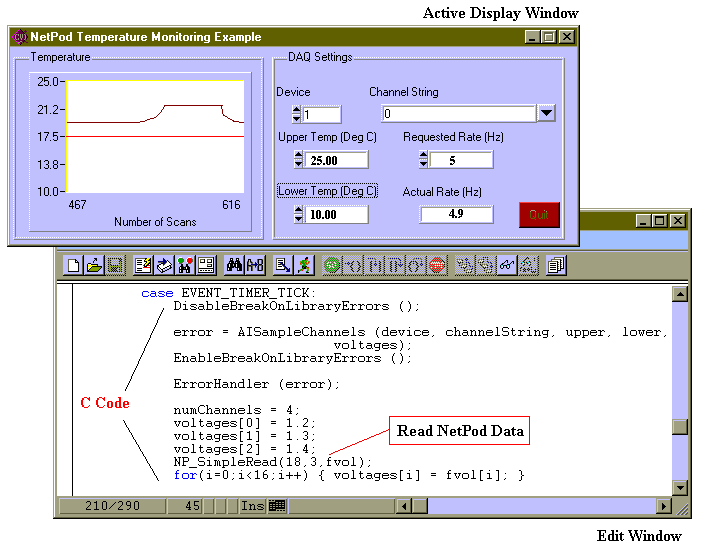

Labview CVI Image
Example Temperature Monitoring System

Further Information

Applications developed using a combination of Labview/CVI and NP4000 instruments gain the advantages of fast development, simple maintenance and control of distributed measurements systems no matter how large or complex. LabWindows/CVI enables programmers to rapidly prototype data acquisition applications using a full software development environment. Multi-user code can be easily created using the standard features of the NP4000 interfaces and can be freely distributed among personnel.

Open Systems Architecture

If you are already programming in C, then LabWindows/CVI already complements your existing efforts. Because Labview/CVI and NP4000 systems are built on open systems architecture then you can simply add monitoring systems to existing network operations as and when required. The use of non proprietary data transmission protocols enables the many third party systems to access information easily and reliably.

Integrated Development Environment

LabWindows/CVI is an integrated development environment for developing instrument systems and contains an interactive, easy-to-use development approach with the programming power and flexibility of compiled ANSI C code. The interactive development tools and libraries used by CVI are designed for developers of automated test systems, bench top experiments and general purpose monitoring projects.
