Physical Dimensions

Beams are 38 x 38 mm
aluminium section

Options for

Slope Inc Senors
Soil Instruments Sensors

Power Supply

+ 3.5 to 6V DC
4 x AA 1.5V Cells

Battery Life

AA Cells 2700 mAH Lifetime 5 Years
C Cells 8700 mAH Lifetime 16 Years
F Cells 17400 mAH Lifetime 32 Years

Operating Temperature Range

-20 to +65 Deg C

Storage Temperature Range

-20 to + 75 Deg C

No Measurement Axis

2

Sensor Inputs

2 x Liquid lilt sensor +
1 x Thermistor (3 KW)

Temperature Sensor

Thermistor 20 to 80 Deg C
Beta Value 3620

Standby Power

200 uA

Active Power

30 mA

RF Frequency

433 - 434 MHz
869.9 MHz
914.65 MHz

Antenna Impedance

50 Ohm

RF Power

10 dBm 50 Ohm Load

FM Deviation

64 KHz

Data Rate

19.2 Kb (default)

Number TS103 units / Frequency

0 to 128 - Expandable upon demand

Range

Typically ± 40 Arc Minute ( ±0.66 Deg)
± 6 Deg
User Defined Option

Repeatability

± 3 Arc Seconds
0.00083 Deg

Wireless Sensor Resolution

0.1% of total range
0.0013 Deg (4.7 Arc second)

Sensor Element

Technical Specifications

The following table summerises the technical specifications for TS103 liquid tilt sensor signal conditioniong unit.

Temperature Compensation

The TS103 is supplied complete with a thermistor sensor to undertake local temperature readings. The output temperature values are in raw data format and require signal processing with suitable thermistor linearisation to obtain true engineering values.

Zero Level Indicator

The TS103 units are supplied complete with an on-board zero level indicator system based around 2 high intensity LED indicators. Simply adjust the sensor tilt angle until both status LED’s are flashing to zero the sensor.

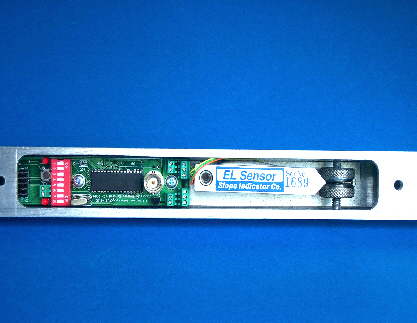

Image below shows the TS103 unit mounted within a beam
using a Slope instruments Inc liquid level sensor.

High - Deg

Example TS103 installation

Download User / Installation Manual
