The NetPod 4000 is a general purpose precision data acquisition system that can be configured for many different tasks. The instrument accepts up to 16 different analogue input modules and 8 different digital I/O modules. All of the inputs are opto-isolated as standard and offer true synchronised data acquisition operations so important in many condition monitoring applications. It is even possible to synchronise the data gathering between channels on instruments connected together on a network in order to form large scale monitoring solutions.

The following page is provided to assist in the selection of instruments and sensor interface configurations for the creation of condition monitoring systems. A range of products are available and can be used for rotating machinery analysis up to rates to 50,000 rpm. Some of the Keynes Controls products can be supplied to operate in harsh environments and also underwater if required.

The NDACS 5000 series instruments are Keynes Controls precision high speed systems that offer unbeatable distributed high speed data acquisition and control capability. The 5000 series instruments are true real-time synchronised systems that can be networked together to form large scale distributed high speed monitoring solutions.

The units are small and can be mounted very close to the source of the signals. The instruments can be provided with a range of enclosures for harsh and even underwater applications. Like all Keynes products a high dynamic range analogue input system is provided offering 24 bit ADC resolution even at fast rates.

·	100 KHz/channel sample rates

·	Network synchronisation

·	24 Bit ADC resolution

·	Sample rate following digital filters

Low power

·	Precision Internal Auto-calibration

·	Simple Installation

·	Hash & Underwater Environmental Protection

·	Options for 2, 4, 6, 8 channel units

Part Numbers: NDACS5008, NDACS5004, NDACS5002

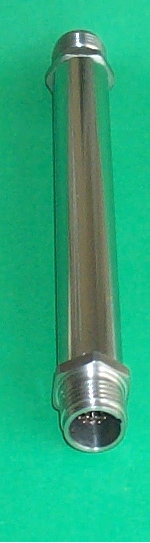

Figure 3 shows the NDACS 5000 instrument
With an environmentally protected enclosure. This instrument can be deployed directly into harsh environments. A range of systems are available including PCB mounted solutions.

The instruments can accept an wide range of input sensors. However, in order to keep the units physical size and power requirements low and no internal signal conditioning is fitted inside the unit.

All aspects of the of the data acquisition system are synchronised. The digital inputs accept tacho signal inputs that can be integrated with the analogue inputs for the various mathematical analysis techniques.

·	Analysis to 20000 RPM

·	High Common Mode Operations

·	High Dynamic Range > 120 dB

·	24 bit High Speed ADC

·	Opto-isolation

·	Synchronised Data Acquisition

·	Sample Rate Following Filters
