Analogue Input Card
Type NPAI24-V1H1

Channel 0

Sensor Excitation

Connector CA-1

Motion Sensor - Connection to NetPod 4000 Unit

The following circuit diagram shows how to connection the M5210-X sensor to the NetPod instruments. The power to drive the motion sensor is taken from the NetPod 4000/4003 and becomes active the instant that the instrument is powered on.

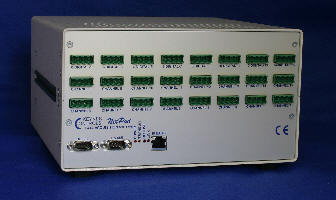

NetPod 4003

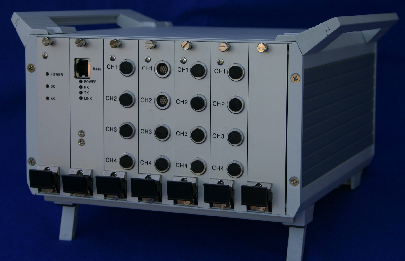

NetPod 4000

NetPod 4000 Sensor Connection

Internet Access / Web Based Logging

For applications where stand-alone remote systems need to be deployed then the best solution is to use the Keynes Controls NDACS6000 family of loggers and the analogue output version of the M5210-X sensor interface.

The NDACS 6000 supports remote access via a web browser and fully automated reporting via e-mail using both standard dial-up modem, Mobile phone and high speed Internet access.

The NDACS 6000 supports options to 1 million records on two independently programmable loggers as well as event capture and reports for both static and dynamic applications.

24 Bit Analogue Inputs
1 million Record Storage
Automatic Data Reports
Web Access
Full Remote Configuration & Download

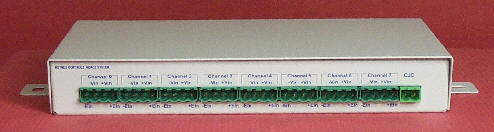

NDACS 6000

For true vector magnitude measurements or when the reading are to be synchronised to other sensor readings then the NetPod range of instruments should be used.

The Figure above shows the M5210-X connected to a PC via the SDI-12 interface unit or directly to an SDI-12 logger unit
