Protection fitted to comply
to SDI-12 standard on the
serial port output

Speaker Selection Switch
Speaker
Gas Discharge Tube
Lightening protection
User Display
Comms Port Pin-out
12  Earth
11  Earth
10  Earth
9  Earth
8                NPN-4
7                 NPN-3
6                NPN-2
5  NPN-1
4  RS-485 -
3  RS-485 +
2  +12V
1  GND
Frequency Hz
+
Sense
-
+
Therm
-
VW-108
Thermistor
Communications

Maximum Network Length   200 ft
Maxiumun number of VW108   10 per network string
Baud Rate    1200
Network Connection    2 wires only
Sensor Connection Diagram

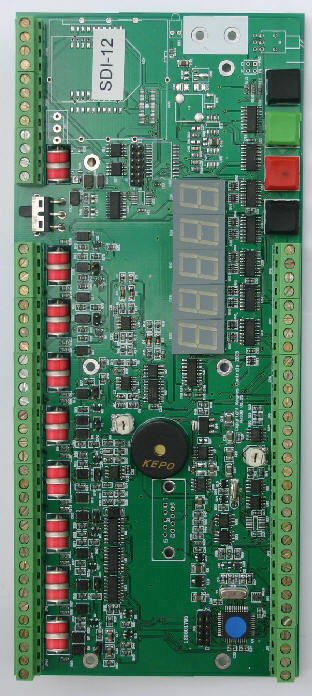

The photograph below shows the VibWire108-SDI12
without its protective cover
